はじめに
現在開発中のゲームでマスターデータをCSVで管理しているのですが、
マスターデータをCSVで管理する方法と
ScriptableObjectで管理する方法のどちらがより高速に
データを読み込むことができるのかが気になったので調査してみました
検証環境
- Unity:5.3.1f1
- OS:Android
- モデル番号:Nexus 7
- Androidバージョン:5.0.1
マスターデータ
今回は下記のようなマスターデータを管理するクラスを用意しました
// タイプを管理する列挙型 public enum TYPE { } // ステータスを管理するクラス [Serializable] public class Status { public int dex_no ; // 図鑑 No. public string name ; // 名前 public TYPE type1 ; // タイプ 1 public TYPE type2 ; // タイプ 2 public string ot ; // 親 public int id_no ; // ID No. public int exp_points ; // 現在の経験値 public int exp_to_next_lv ; // 次のレベルまでに必要な経験値 public int hp_current ; // HP 現在値 public int hp_max ; // HP 最大値 public int attack ; // 攻撃 public int defense ; // 防御 public int attack_sp ; // 特攻 public int defense_sp ; // 特防 public int speed ; // 素早さ public int arena_trap_name ; // 特性名前 public int arena_trap_detail ; // 特性詳細 }
読み込む方法

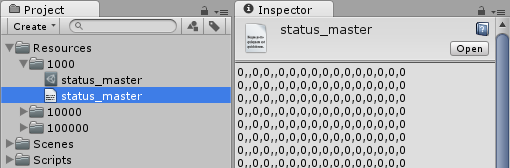

CSV から読み込む方法
ResourcesフォルダからCSVを読み込んで
Statusクラスのインスタンスを生成します
var list = new List<Status>(); var textAsset = Resources.Load<TextAsset>( "status_master" ); var text = textAsset.text; var row = text.Split( '\n' ); for ( int i = 0; i < row.Length; i++ ) { var column = row[ i ].Split( ',' ); var status = new Status { dex_no = int.Parse( column[ 0 ] ), name = column[ 1 ], type1 = ( TYPE )( int.Parse( column[ 2 ] ) ), type2 = ( TYPE )( int.Parse( column[ 3 ] ) ), ot = column[ 4 ], id_no = int.Parse( column[ 5 ] ), exp_points = int.Parse( column[ 6 ] ), exp_to_next_lv = int.Parse( column[ 7 ] ), hp_current = int.Parse( column[ 8 ] ), hp_max = int.Parse( column[ 9 ] ), attack = int.Parse( column[ 10 ] ), defense = int.Parse( column[ 11 ] ), attack_sp = int.Parse( column[ 12 ] ), defense_sp = int.Parse( column[ 13 ] ), speed = int.Parse( column[ 14 ] ), arena_trap_name = int.Parse( column[ 15 ] ), arena_trap_detail = int.Parse( column[ 16 ] ), }; list.Add( status ); }

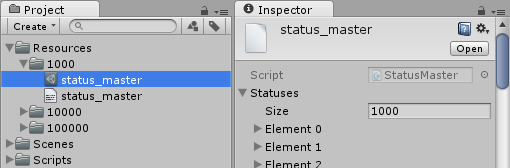

ScriptableObject から読み込む方法
ResourcesフォルダからScriptableObjectを読み込んで
Statusクラスの配列を取得します
[CreateAssetMenu] public class StatusMaster : ScriptableObject { public Status[] statuses; }
var statusMaser = Resources.Load<StatusMaster>( "status_master" ); var list = new List<Status>( statusMaser.statuses );
読み込み時間(秒)の比較
形式 | 1,000件 | 10,000件 | 100,000件 |
---|---|---|---|
CSV | 0.027252200 | 0.2178650000 | 2.258942000 |
ScriptableObject | 0.003875732 | 0.0001525879 | 0.001434326 |
まとめ
ScriptableObjectの方がCSVよりも読み込む速度が早いことがわかりました
CSVの場合は特定のインスタンスに変換するために
文字列操作したり型変換する必要がありますが
ScriptableObjectの場合は特定のインスタンスの要素を
そのまま保持しておけるためだと思います
検証用のスクリプト
検証用のUnityパッケージ
https://dl.dropboxusercontent.com/u/52568393/koganeblog/csv_vs_scriptable_object.unitypackage
